| 材质：塑料 | 品牌：美国RETZ瑞茨 | 连接形式：丝扣 法兰 |
| 类型(通道位置)：直通式 | 驱动方式：手动 | 介质温度：80℃ |
| 工作压差：1.6MPa | 型号：进口膜片式脉冲阻尼器 | 产品别名：进口计量泵脉动缓冲器 |
| 流动方向：单向 | 用途：将气体与管路中的液体隔离 | 适用介质：弱酸碱介质 |
| 压力环境：常压 |
RETZ/我们一直致力于流体控制领域的持续创新，始于2005……

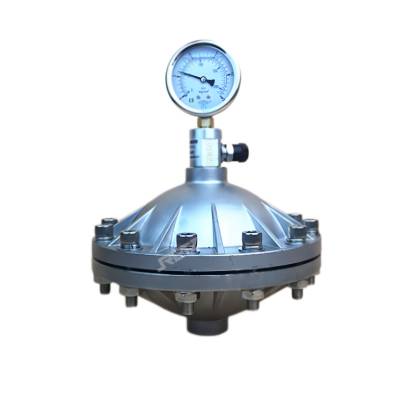

进口膜片式脉冲阻尼器是消除管路脉动的常用元件，是计量泵必须配备的附件。脉动阻尼器能够平滑由计量泵、隔膜泵等容积型泵引起的管路脉动和系统的水锤现象。它由耐腐蚀的隔膜将气体与管路中的液体隔离，通过气室容积的变化平滑管路脉动Retz Imported diaphragm pulse dampers, pulsation dampers, and pulsation buffers are commonly used components to eliminate pipeline pulsation and are necessary accessories for metering pumps. pulsation damper can smooth pipeline pulsation and system water hammer caused by volumetric pumps such as metering pumps and diaphragm pumps. It is separated from the liquid in the pipeline by a corrosion-resistant diaphragm, and the pulsation of the pipeline is smoothed by changes in the volume of the gas chamber.
规格Specification:G1/2～2"、F1-1/2～2-1/2"
适用温度Temperature：≤80℃
压力范围Pressure Range：1.6MPa
材质Materia：PVC、PP、PVDF、SUS304、SUS316L
连接方式：丝扣、法兰 screw threads, flanges
隔膜材质：PTFE复合、FPM（氟橡胶）、EPDM（三元乙丙）、NBR（丁腈）
工作原理operational principle
根据玻义耳定律P：V=P.V，气体的体积与气体的压强成反比，通过改变气体的体积来平滑管路脉动。对于流速有正弦曲线性的系统作用，波峰时：气室体积变小，脉冲阻尼器吸收多余的流量液体；波谷时：气室体积变大，释放存储的液体，从而达到平滑脉动的效果。
According to Boyle&＃39;s law P:V=P.V, the volume of the gas is inversely proportional to the pressure of the gas, and the pipe pulse is smoothed by changing the volume of the gas. For the system with sinusoidal curve, at the peak, the chamber volume becomes smaller, the pulse damper absorbs the excess flow fluid; at the trough, the volume of the chamber becomes larger, so as to achieve the effect of smooth pulsation.
功能特点 Functional characteristics
减小水锤对系统的危害。减小流速波动的峰值。保护管路、阀门、接头不受压力波动的冲击。为计量泵创造良好的工作环境并改善泵的工作性能。允许系统使用更小的管径，降低成本。和背压阀等配合使用可以使管路的压力波动接近为零。降低系统的能耗。
Reduce the harm of water hammer to the system. Reduce the peak value of flow rate fluctuations. Protect pipelines, valves, and joints from pressure fluctuations. Create a good working environment for metering pumps and improve their performance. Allow the system to use smaller pipe diameters to reduce costs. When used in conjunction with backpressure valves, the pressure fluctuation in the pipeline can be close to zero. Reduce the energy consumption of the system
