| 品牌：美国RETZ瑞茨 | 型号：进口隔膜式不锈钢安全阀 | 阀瓣开启高度：全启式安全阀 |
| 结构形式：弹簧式 | 3C阀门类别：工业 | 加工定制：否 |
| 连接形式：丝扣 法兰 | 材质：不锈钢 | 适用介质：水 气体 油品 液体 蒸汽 |
| 标准：美标 | 流动方向：双向 | 零部件及配件：阀体 |
| 压力环境：常压 | 类型(通道位置)：直通式 | 阀体构造：封闭式 |
| 规格：1/2～2 |
RETZ/我们一直致力于流体控制领域的持续创新，始于2005……

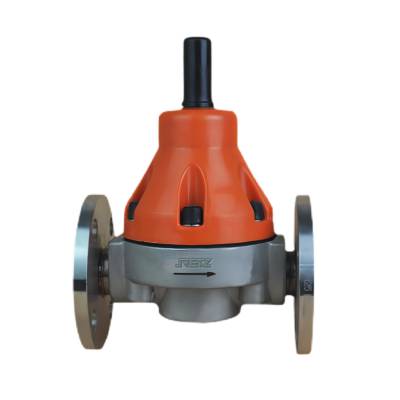

进口隔膜式不锈钢安全阀、不锈钢背压阀在现场可通过调节螺丝借助管路中的压力表在0-1.0Mpa范围内设置压力，泄放压力一般设置高于系统压力0.1-0.2Mpa，安全阀调压不允许超过泵的压力，安装一般尽量靠近泵的出口处，泵与安全阀之间不应有任何阀门，保护泵的安全和系统的正常运行Imported stainless steel safety valves and stainless steel back pressure valves can be set within the range of 0-1.0Mpa on site by adjusting screws with the help of a pressure gauge in the pipeline. The relief pressure is generally set to be 0.1-0.2Mpa higher than the system pressure. The pressure adjustment of the safety valve should not exceed the maximum pressure of the pump, and installation should generally be as close as possible to the pump outlet. There should be no valves between the pump and the safety valve to protect the safety of the pump and the normal operation of the system
规格Specification:1/2～2"
适用温度Temperature：≤80℃
设定背压范围Set back pressure range：0~1.0MPa、0.2~1.6MPa
材质Materia：SUS304、SUS316LF
连接方式：丝扣、法兰 screw threads, flanges
隔膜材质：PTFE+橡胶复合 Diaphragm material: PTFE+rubber composite
进口隔膜式不锈钢安全阀、不锈钢背压阀性能特点 Performance characteristics
释放管路压力，***系统压力稳定 Release pipeline pressure to ensure stable system pressure
保护泵的安全和系统的正常运行 Protect the safety of the pump and the normal operation of the system
与脉冲阻尼器配合使用减小水锤对系统的危害，达到优越的低振动调节效果 Combined with pulse dampers to reduce the harm of water hammer to the system and achieve superior low vibration regulation effect
减小流速波动的峰值，保护管路系统不受压力波动的冲击 Reduce the peak value of flow rate fluctuations and protect the pipeline system from pressure fluctuations
隔膜采用***的PTFE+橡胶复合工艺，几乎适用于所有腐蚀性流体，密封可靠无泄漏 The diaphragm adopts advanced PTFE+rubber composite technology, which is almost suitable for all corrosive fluids, with reliable sealing and no leakage
