| 品牌：美国RETZ瑞茨 | 型号：进口135度角切换Y型三通球阀 | 材质：铸钢 碳钢 不锈钢 |
| 连接形式：法兰 | 结构形式：浮动球球阀 | 3C阀门类别：工业 |
| 公称通径：DN25~DN250mm | 适用介质：粉料 细灰 粉体颗粒 物料 | 压力环境：常压 |
| 工作温度：常温 | 标准：国标 德标 美标 | 驱动方式：手动 电动 气动 |
| 零部件及配件：阀体 | 用途：切换 | 类型(通道位置)：三通式 |
RETZ工业/美国瑞茨，我们一直致力于流体控制领域的持续创新，始于2005……

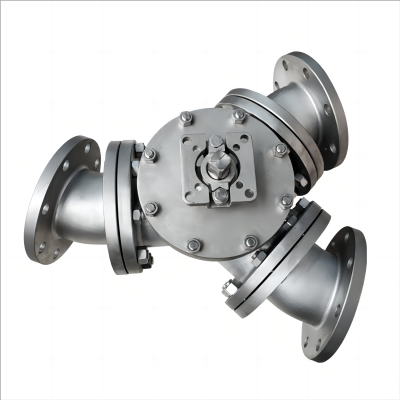

进口135度角切换Y型三通球阀性能描述 Performance description
(135度角粉料切换)进口Y型三通球阀适应于粉料、细灰、粉体颗粒、物料等介质实现流向的切换，流体阻力小，流通能力强，不会使介质停留在流道内部，实现各管道能够得到很好、很顺的切换(13***ngle powder switching) The imported Y-shaped three-way ball valve is suitable for switching the flow direction of media such as powder, fine ash, powder particles, and materials. It has low fluid resistance, strong flow capacity, and will not cause the media to stay inside the flow channel, achieving good and smooth switching of various pipelines
进口135度角切换Y型三通球阀工作原理 Working principle
(135度角粉料切换)Y型三通球阀的阀体三个管口的流体通道之间被设计成互成135夹角，一进两出设计，其流体通道的三个开口设有阀座，阀座的通孔构成管口，阀座朝向球体的一端与球芯的外周面之间设有压紧块，压紧块朝向球体的侧面具有与球芯外周面的弧面配合的抵接面，压紧块的另一侧与阀座之间设有内密封结构 RETZ (135powder angle switching) The fluid channels of the three pipe orifices of the valve body of the Y-type three-way ball valve are designed to form an included angle of 135 with each other. One inlet and two outlets are designed. The three openings of the fluid channel are provided with valve seats. The through holes of the valve seats form the pipe orifices. A compression block is arranged between the end of the valve seat facing the ball and the outer circumference of the ball core. The side of the compression block facing the ball is provided with an interface matching with the arc surface of the outer circumference of the ball core, An internal sealing structure is arranged between the other side of the compression block and the valve seat
进口135度角切换Y型三通球阀技术参数Product Specifications
公称压力Nominal pressure：PN1.6~6.4MPa、ANSI150LB~300LB
公称通径Nominal diameter(mm)：DN25~DN250
连接形式Connection Type：法兰Flange
阀体材料Body material：WCB、CF8、CF8M、CF3、CF3M等
阀座形式Valve seat form：软阀座（PTFE）、金属阀座（密封面硬化处理 ）Soft seat（PTFE）、metal seat (hardened sealing surface)
适用温度proper temperature：软阀座：-20~ ＋ 200℃，金属阀座：-196~ ＋ 400℃ Soft seat: -20~ ＋ 200℃ Metal seat: -196~ ＋ 400℃
泄漏等级Leakage level：ANSI VI
设计标准design standards：GB/T12237，API，JIS，DIN
结构长度 Structure length：GB/T12221，ANSI B16.10，JIS，DIN 3202
法兰标准 Flanged Ends：HG20592，GB/T-9113，ANSIB16.5，JISB2220~1984，DIN2501
检测标准 Testing standards：GB/T26480，API598，GB13927
操作方式Operation method：手动、气动、电动等Manual、pneumatic、electric,etc.
