| 产品特性：不锈钢 | 型号：进口卫生级三通旋塞阀 | 品牌：RETZ瑞茨 |
| 材质：不锈钢 | 连接形式：卡套 | 加工定制：是 |
| 公称通径：15-150mm | 结构形式：自封式 | 压力环境：常压 |
| 工作温度：常温 | 标准：美标 | 流动方向：双向 |
| 驱动方式：手动 | 零部件及配件：阀体 | 用途：调节 |
| 类型(通道位置)：三通 | 适用介质：水 | 规格：15-150 |

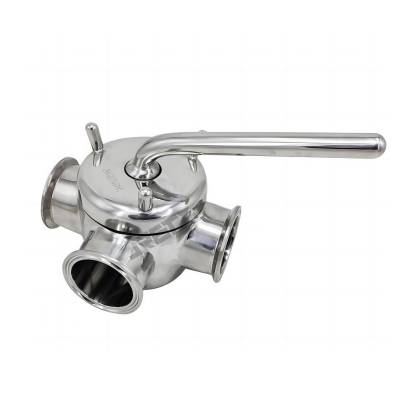

品牌：RETZ瑞茨/我们一直致力于流体控制和测控领域的持续创新，始于2005……进口卫生级三通旋塞阀用于切换控制，应用巧克力、奶油、糖浆、油品、冰淇淋、化工液体等比较粘稠的液体介质。***，阀体内腔采用电镀(抛光)处理，阀外表采用镜面抛光处理，满足食品(制药)等行业需要，本阀应用于乳品(制药)行业，合理的阀体结构设计，方便阀芯拆装清洗，以***阀门的洁净无菌要求retz The sanitary grade three-way plug valve is used for switching control and is suitable for viscous media such as syrup, ice cream, etc. No dead corners, the inner chamber of the valve body is treated with electroplating (polishing), and the outer surface of the valve is treated with mirror polishing to meet the needs of industries such as food (pharmaceutical). This valve is applied in the dairy (pharmaceutical) industry, and the reasonable valve body structure design facilitates the disassembly and cleaning of the valve core, ensuring the cleanliness and sterility requirements of the valve
进口卫生级三通旋塞阀特点：
阀芯表面镀铬硬化处理，阀芯锥度密封
优越精准的抛光技术，尺寸精准,管件间焊接容易,装配迅速
管端到管端之间壁厚一致,产品流动畅行无阻,避免残留
食品卫生级表面处理。确保产品抗锈能力并通过食品卫生标准
进口卫生级三通旋塞阀选型参数
工作压力∶≤bar Working pressure: ≤bar
工作温度：-10℃-120℃ Operating temperature - 10 ℃ - 120 ℃
规格尺寸：1～3" Size: 1 ～ 3“
密封材质∶PTFE Sealing material: PTFE
阀体材质∶304、316L Valve body material: 304、316L
接口形式∶焊接，快装(卡箍式)，螺纹(活结式)
控制方式∶手动切换 Control mode: manual switching
表面处理∶外表面Ra≤1.6μm，内表面Ra≤0.8μm Surface treatment: external surface Ra ≤ 1.6 μ m. Internal surface Ra ≤ 0.8 μ m
